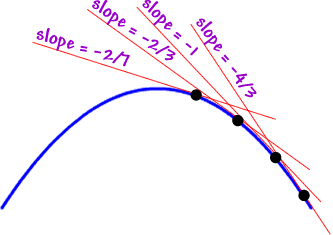

Now, look at the tangent lines on the right side...


on the decreasing side of a mountain...  the first tangent line has a slope of -2/7...  the second tangent line has a slope of -2/3...  the third tangent line has a slope of -1...  the fourth tangent line has a slope of -4/3


The slopes not only tell us that revenue is decreasing...  But, those values are getting smaller!  This is NOT a good thing when revenue is involved.

OK, let's look at one of those valleys:

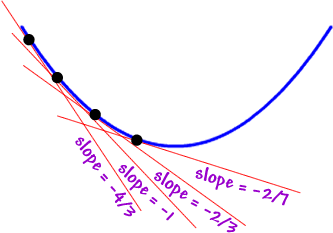

Look at the tangent lines on the left...


on the decreasing side of a valley...  the first tangent line has a slope of -4/3...  the second tangent line has a slope of -1...  the third tangent line has a slope of -2/3...  the fourth tangent line has a slope of -2/7


Things are bad...  But, although those slopes are negative, they're getting bigger.

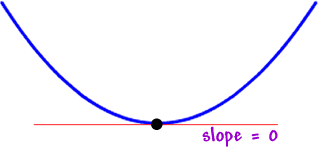

This could mean that a much needed turnaround in revenue is coming!  Look at the bottom...  There's one of those horizontal tangent lines again!


at the bottom of a valley, the slope is 0
